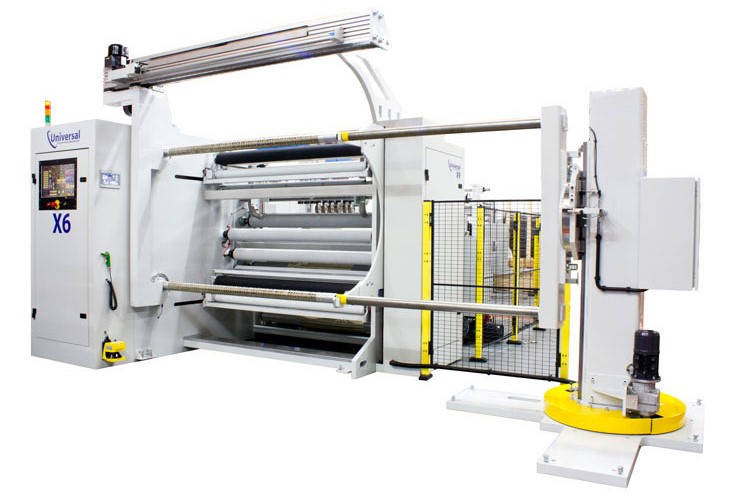

X6 Duplex Slitter Rewinder
The X6 Duplex Slitter Rewinder is suitable for film producers and flexible material converters. The X6 is capable of processing a wide range of films, foils, papers and laminates.
The Universal X6 slitting machine has been designed to produce perfect slit rolls time and time again. This versatile machine incorporates Universal’s closed loop Total Tension Control System, ensuring consistent and repeatable roll tension profiles. Using digital AC vector drives and integrated control system, the machine offers unprecedented control whilst being simple and friendly to operate. Technology is used to save time and improve accuracy resulting in higher productivity and improved quality.
Standard Features
The X6 is packed with features to maximize automation and efficiency.
- Fast loading system for parent roll
- Print repeat length measurement and impression counter
- Automatic guider eye positioning
- Automatic shear and razor knife positioning with individual knife holders
- Automatic core positioning
- Automatic roll unloading
- Automatic knife positioning
- Tension zone through slitting
- Closed loop rewind tension control
- Constant geometry contact rollers
- Dynamic diagnostic systems for in plant and remote access
- Compact or Separate Unwind
- Shaftless Unwind
- Splice Table
- Digital web guiding
- Shear, Razor or Crush cut slitting
- Speed options – 600 m/minute (2000 ft/min)
- 610mm rewind diameter
- Unloading roll pusher
Key Details of the Universal X6
Engineered for efficiency, quality, and reliability.
- High speed – 600m/min
- Simple to set up and operate
- Short web path
- Fast changeover maximising machine uptime typically less than two minutes
- Automatic knife set up – up to 20 knives set in less than 2 minutes
- Automatic core alignment without the use of laser pointers
- Automatic clamping of material and cross cut at the end of a set of finished rolls
- Digital web guiding
- Comprehensive on screen diagnostics
- Closed loop, load cell control of rewind tension
- Recipe system to ensure repeatability.
- Constant geometry, linear motion, contact roller system with automatic pressure control
- Large diameter path rollers with specialised finish to suit application
- Short distance from knives to rewinds
- Short distance between rollers
- Robust design with heavy duty frames
- Only high quality components from global suppliers
- Unique dynamic circuit diagrams with auto fault-find system
- Large 22 inch touch screen control interface
- Internet based real-time remote diagnostics
- No Hydraulics
- Operator friendly safety system compliant with EN13418
- Low maintenance
- Worldwide support
Technical Information
Detailed breakdown of the Universal X6's capabilities.
| X6 Slitter Technical Information | X | Y | ||
|---|---|---|---|---|
| Unwind diameter options | ||||
| Compact: | 40 inches | 1000mm | 4100mm | |
| Separate: | 51 inches | 1300mm | 6200mm | |
| Rewind diameter options: | 24 inches | 610mm | ||
| Web width options: | 69 inches | 1750mm | 6310mm | |
| Speed options: | 2000 ft/min | 600 m/min |
Lifetime Support & Dependability
Integrated technology allows remote diagnostics anywhere in the world simplifying ongoing support. We provide FREE telephone and internet based support for the life of the machine. The Universal X6 slitter is designed to be reliable but when you need help, we will give it without charging.
The use of high quality components and extensive on machine diagnostics reduces ongoing maintenance requirements. Most of the mechanical parts for the Universal X6 slitter are manufactured in our own machine shop using the latest CNC equipment. We hold extensive stocks to back up our service commitment.
The Universal X6 slitter is designed for quality and productivity. It is built to last and is supplied with our commitment to provide excellent support.
